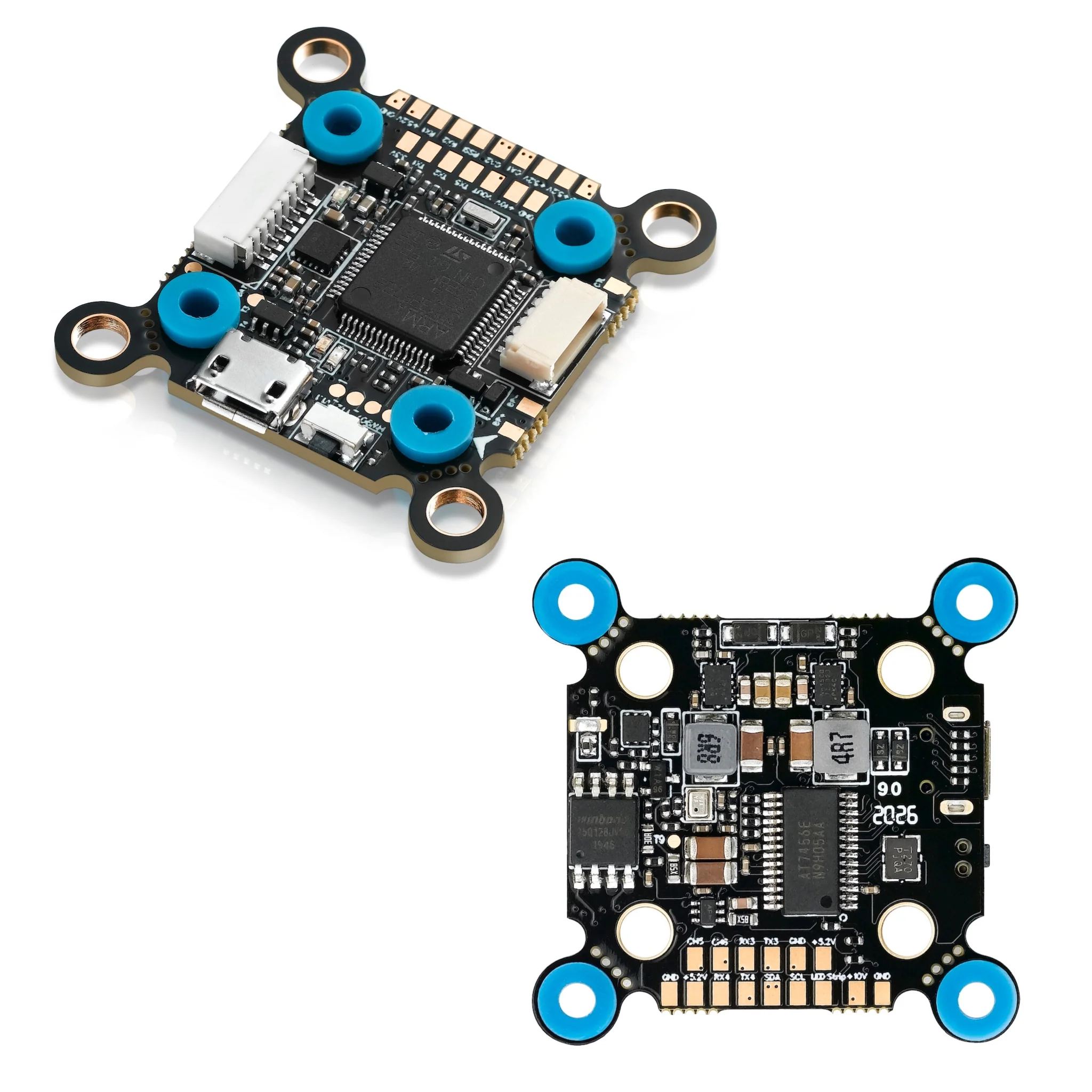

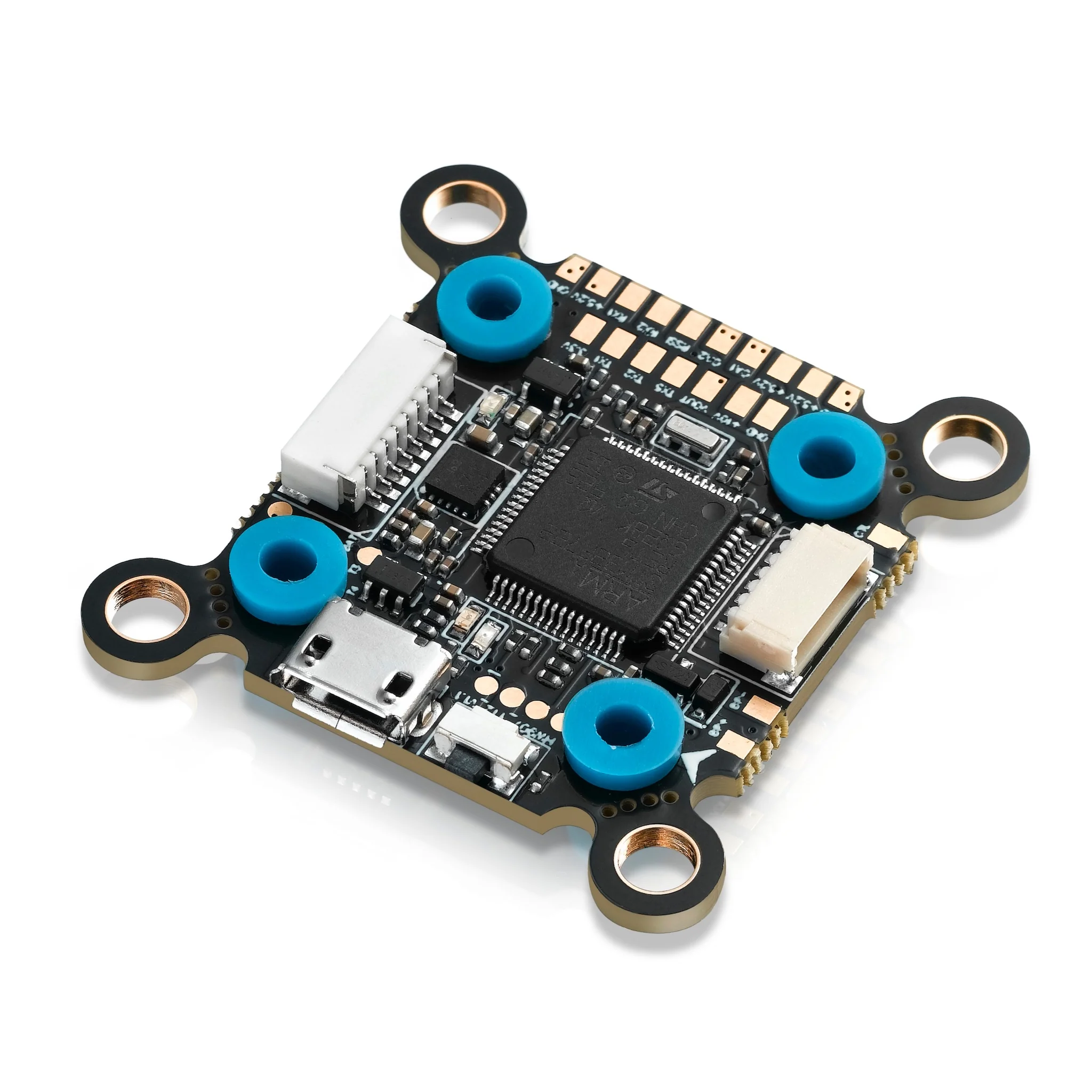

F7 Convertible Flight Controller that works w/ Special interface for DJI image transmission system

Redesign every aspect
Super hardware and running speed Equipped with STM32F722 MCU which has powerful computing ability and fast running speed, and high sensitivity MPU6500 six-axis motion sensor. It can perfectly support bidirectional DShot digital throttle communication. The integrated OSD chip can adjust and set each OSD parameters in FC parameter adjustment software and radio, which is simple and convenient. On-board large capacity Flash memory chip can record and store more flight logs, which is convenient for users to debug aircraft based on flight data.
Special interface for DJI image transmission system With DJI image transmission system port, equipped with corresponding flat cable (FC has been equipped), can avoid welding, realize plug and play.
On-board 5V & 10V dual BEC circuit FMU integrates with 10V BEC circuit. It can supply super power output for image transmission and 10V LED devices.
On-board Pit Switch module FC integrated Pit Switch module can open or close VTX by radio after being adjusted on FC parameter software. Easy and convenient.
Perfectly support firmware of various FPV It support the firmware of BetaFlight , Cleanflight , Butterflight , inva and other mainstream FPV, and can use corresponding parameter adjustment software to adjust various parameters, making the FC more suitable for various FPV flight and race.
Unique installation design and shock absorption structure The double hole distance mounting hole design (30 * 30MM & 20 * 20MM) can adapt to different frames. The unique flexible flat cable connection mode (The effect is better with hobbywing tower 4in1 ESC ), and the shock absorption mechanism of installation hole, can effectively reduce the impact of external vibration on FC high-sensitivity components, and make the flight more stable and accurate.
Perfectly match with Hobbywing ESC Match with Hobbywing tower 4in1 ESC, easy to install and wire. The appearance is more beautiful.
Volt/Amp monitoring port allows users to check the battery voltage (BAT port) and current (CRT port , extra current meter is needed).
Buzzer output port allows users to connect external buzzer(s) to the FC for warning or informing the flight status of the aircraft.
Micro USB port allows users to connect the FC to a PC to flash firmware and adjust parameters.
Switch module of board load graphic transmission(VTX) can use remote control to control switch of graphic transmission.
Double M3 mounting holes with damping aprons.

Model	Micro F7 Flight Controller Convertible
SKU	31003002
Application	FPVs with 130-300mm FPVs Diagonal Wheelbase
Firmware	HOBBYWING_XROTORF7CONV
FC Programming	supported
Programming via	Betaflight/Cleanflight-configurator and Others
Compatible with (Modes)	PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, DShot1200, Proshot1000 and etc
Compatible with (Transmitters)	PPM, Spektrum, SBUS, SUMD, SUMH, XBUS, IBUS, JETIEXBUS, CRSF, SRXL, and etc.
OSD	Buit-in / Fit for DJI VTX system plug and play port
Voltage Monitoring	Supported
Current Monitoring	Supported
External Buzzer	Supported
LED Control	Supported
USB Port	MicroUSB
Timing	Supported
Motor Rotation	Supported
Mounting Holes	30.5x30.5mm & 20x20mm
